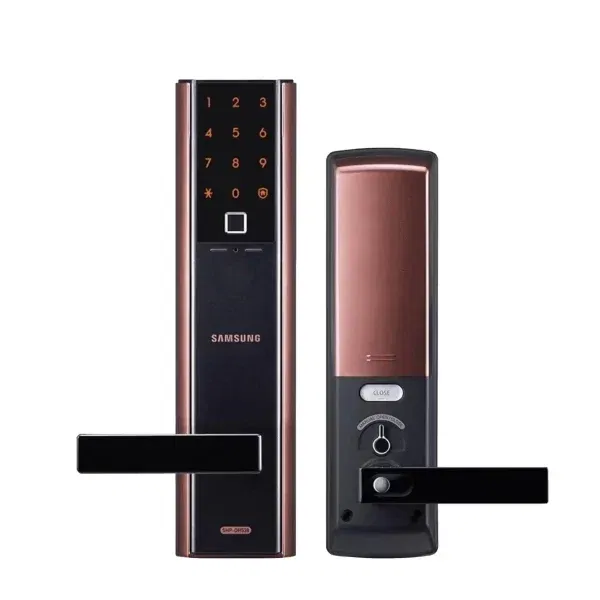

Samsung SHP-DH538 Finger Print Door Lock

Samsung SHP-DH538 Fire Rated Digital Lock Technical Specifications:

• With its innovative design and 60-minute fire resistance rating, you can rest easy knowing your property is safe.
• Available Colors: Grey | Copper
• Max User Memory: 1 Master (PIN), Fingerprint / PIN (up to 100)
• Access Mode: PIN, Fingerprint, Mechanical Key, Mobile App – Smarthome (optional)
• User Friendly Interface: Yes
• Double Verification: PIN + Fingerprint
• Intrusion Prevention: Yes
• Out-body Dimension (W x H x D)mm: 81.8(W) X 320(H) X 66.8(D)mm
• In-body Dimension (W x H x D)mm: 79(W) X 290(H) X 80.3(D)mm
• Applicable Door Thickness (mm): 40-80mm
• Door to Gate Allowance (mm): 70mm
• Clearance From Door Edge (mm): 120mm
• Power: DC 6V (AA Alkaline batteries) x 8
• Battery Life: Approximately 10 months (Average 10 times per day)



Downloads: Samsung SHP-DH538 Product Catalogue | Samsung SHP-DH538 User Manual



Samsung SHP-DH538 Features:

• Fingerprint Unlocking
• Keypad Unlocking
• Mechanical Overriding Key
• Random Security Code
• Anti-Theft Setup
• Volume Control
• Fire Warning
• 9v Battery Backup
• Automatic Locking
• Double Locking Authentication
• Low Battery Indicator

Simple & Stylish Digital Lock

Harmony with modern home interior design, winner of the coveted iF and Red Dot Design award.



Finger Print

Your finger is the key

Using the same fingerprint authentication methods as modern Smartphones, the scanner is not affected by temperature or humidity. A precise and rapid one-touch direct fingerprint authentication method that does not require any further actions to open the door.



EASY & CONVENIENT



SMART LEVER DOOR LOCK



Intuitive LED Touch Pad

Orange backlit touch pad helps You unlock the door lock at night time.



Convenient LED status icons



DOUBLE LOCK



INTRUSION ALARM



LOW BATTERY



AWAY MODE



Child-Proof Your Lock

With the assurance knob feature, you never have to worry about your child wandering away from home.

Anti-theft Mode

Enable Anti-theft mode when you leave the house. Once activated, an alarm will trigger if anyone attempts to open the door from inside



Random Security Code

Before entering your password you will be prompted to tap two randomly chosen digits, making it impossible to guess which numbers you have entered by looking for smudges.



Intrusion-Alarm

After 5 failed entry attempts lock will disable itself for 3 minutes, preventing authentication of any kind.

Forced entry or attempted tampering to bypass the lock will set off alarm immediately.



High Temperature Alarm

High Temperature Alarm When the built-in sensor detects abnormal high-temperature, the alarm will be triggered, and the doorlock will flash to alert the user. The doorlock will be also automatically unlocked to allow fast escape.

* High-temperature detection function is operational at about 70 °C ± 10 °C ; this can vary depending on the installation environment.



Emergency  Power Supply

No battery; no problem. Simply use a 9V battery to power the

lock from the outside and enter as per usual.



Silent Mode

If you have a little child or often enter/exit your home late at night, you can adjust the volume or mute the key tone ore the door opening melody for your family or neighbourhood.

Low Battery Alarm

If the batteries are running low, The door lock informs you through a specific melody or keypad LED. You can easily replace the batteries without having to check the battery life.
