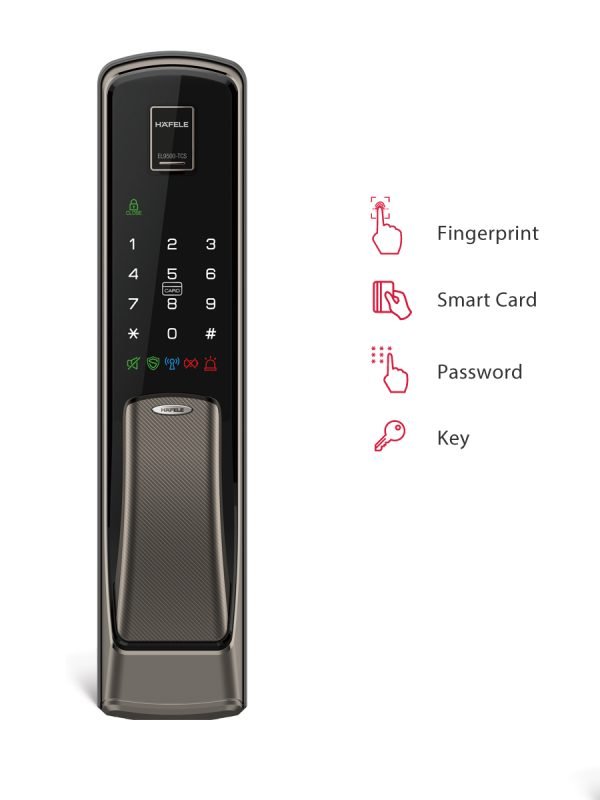

Push & Pull electronic lock, operated by fingerprint, Pin code, magnetic card, mechanical key. Suitable for wooden doors, door thickness: 40 – 90 mm Full set: 2 large magnetic cards 85 x 54 mm, 2 small magnetic cards 45 x 25 mm, 3 mechanical keys
Code scrambling function
The handle can be reversible, suitable for left and right open doors
Push and pull door function: it can vary according to the direction of opening
2-way lock body: convenient for installation adjustable in left / right direction.
Mischief and hacking prevention system
Automatic/manual lock setting function
Auto-lock function: If the user does not lock the door after unlocking, the lock will be locked automatically for higher security.
Dual lock function: When the dual lock function is activated, the door cannot be opened from the outside, even with a registered card, password or fingerprint (only by means of the key).
Low battery warning function
Battery operated:
4AA
Emergency operation:
DC9V battery (not included in product package)
Remote control:
Optional
Battery life:
1 year
Size:
Front- 88 (W) x 396 (H) x 40 (D)mm
Back- 83.7 (W) x 373 (H) x 38.7 (D)mm
Door thickness:
40 – 90mm
Supplied with:
1 Front and the rear module
1 Striking plate
1 Set of fixing the material
1 User manual
1 Installation template
8 pcs of batteries
4 Cards
3 Mechanical keys
Download Hafele EL9500 Product Catalogue
