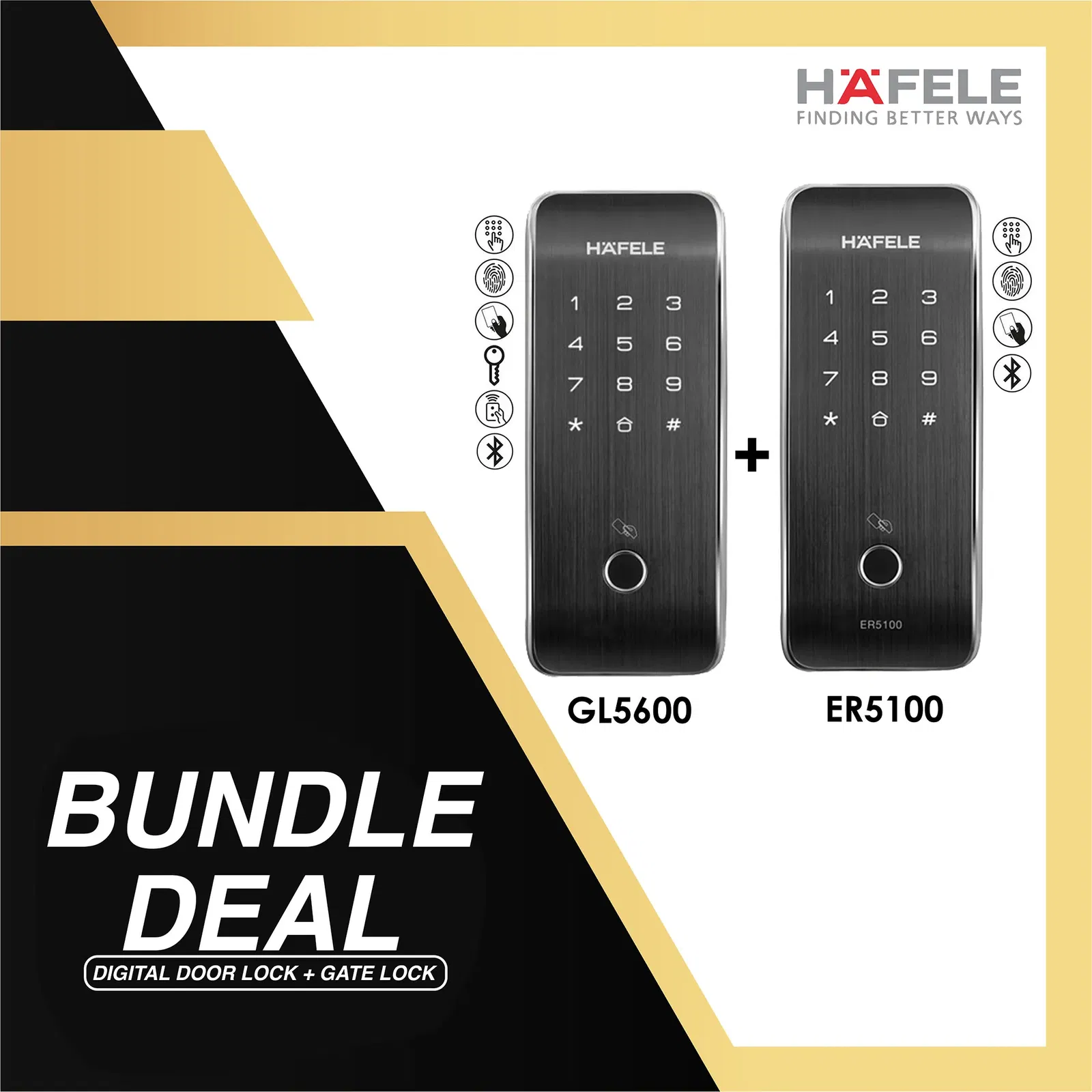

Hafele Bundle A ( GL5600 Gate Lock+ ER5100 Digital Lock )

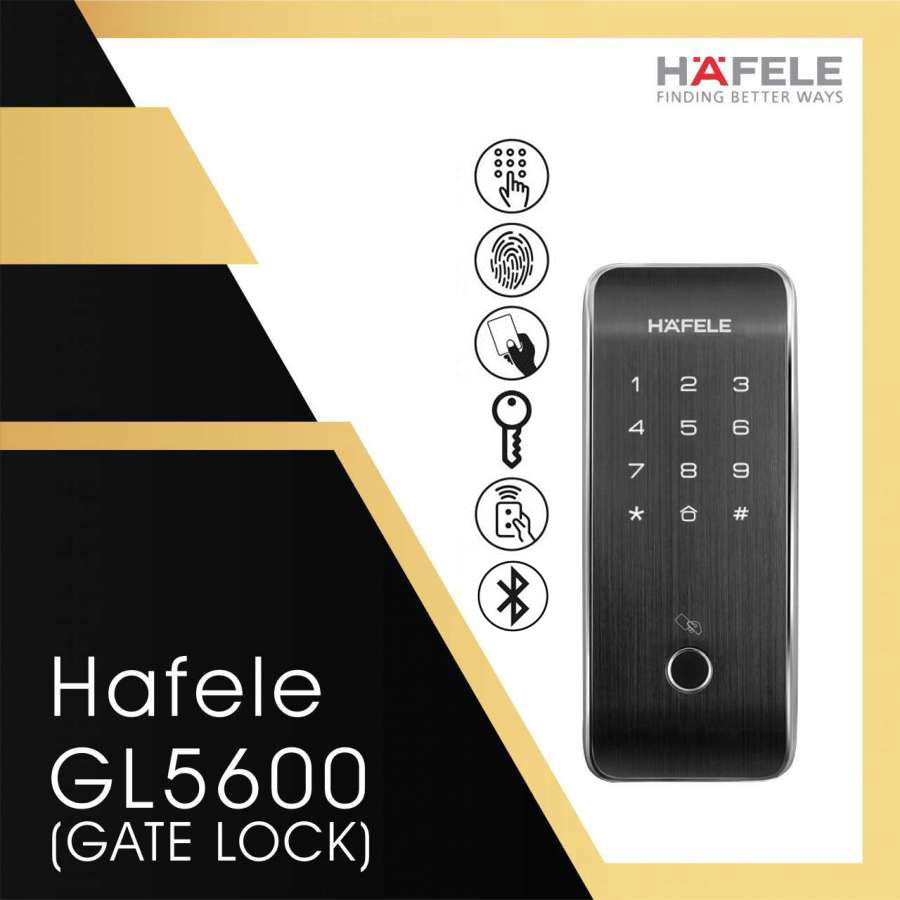

Model: GL5600 Gate Lock
Access Functions: 5 in 1 (BLE/Fingerprint/PIN /Card /KEY)
Accessories: Remote control
Door Thickness: 30-90 mm
Front – 171*72*13 mm
Back – 200*77*31 mm
Front – 155*67*14mm
Back – 90*48*31 mm
8 units per carton – 49x38x29cm
Gross Weight: Single unit: 1.9 KG
Carton (8 units): 15.8KG

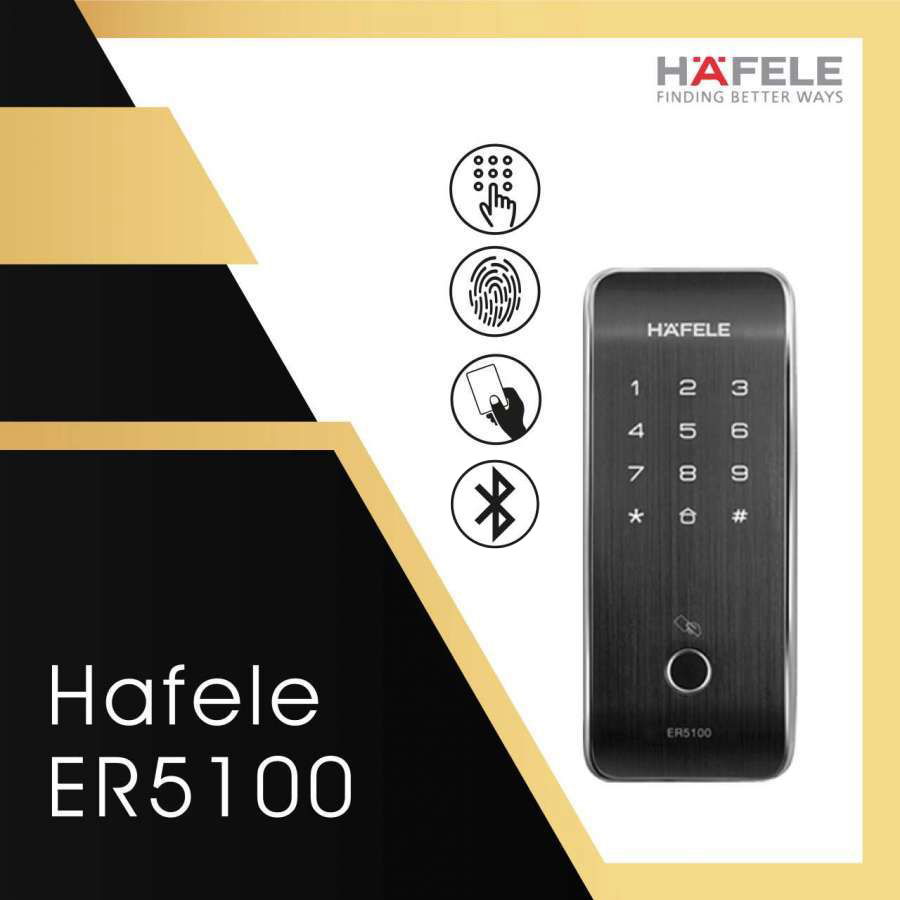

Model: ER5100 Digital Lock
• Functionality : Fingerprint, Password & Key card
• Appliance door type : Wood door
• Material :Al, Zn, PC, ABS
• Dim. (W x D x H)
Front dimensions: 71 x 13 x 172 mm
Back dimensions: 77 x 48 x 200 mm
• Door thickness30 – 50 mm
• Managed by master password and user password.
• Can be flexibly switched between automatic and manual locking modes.
• Automatically disabled for 5 minutes after 10 consecutively failed logins with
passwords / cards / fingerprints.
• Low battery sound alert.
• Silent mode available.
• Electric shock resistance.
• One password can be entered with a random number to prevent stealing.
• One-touch locking from outside.
• Absence mode available to enhance the security of the house.
• Voice guide feature (English / Spanish / Turkish / French / Chinese).
• Voltage : 6V (alkaline battery 1.5V x 4ea, AA size).
• Operating temperature range from -10°C to +55°C
1 Inside panel & 1 outside panel
1 inside mounting plate
3 Strike plate
1 Screws set
1 User Manual
1 Installation guide
2 big cards (85.5 x 54mm)
2 tag cards (45 x 15mm)
* Five Way Solution: Five electronic locking modes: Master Pin Code / User Pin Code, Key Card, App, Fingerprint, and Remote Control.
* Master Pin Code / User Pin Code / Key Card / and Fingerprint Indentification: 1 Master Pin Code, up to 10 User Pin Code, 1 Temporary User Pin Code, 100 Key Cards, 100 Fingerprints.
* Random Security Coding Function: The random number can be added before or after the real user Pin code but the maximum length is 32 digits. This feature will prevent the real user Pin code from being exposed.
* Auto Lock / Auto re-lock Function: When the door is closed, the lock will lock automatically (In case of auto locking mode).
* Burglary Alarm Function: When the door is opened by force, the lock is suspended with alarm.
* Prevent mischief and hacking: When entering 5 times a wrong user Pin code / fingerprint and card in 5 minutes, the lock is suspended 100 100 seconds. After that the lock will activate again. While the lock is suspended, the screen will flash when you are trying to use keypad.
* Alarm for battery replacement time: When the power of battery is too law a warning signal will appear on the screen. Please replace all batteries immediately.
